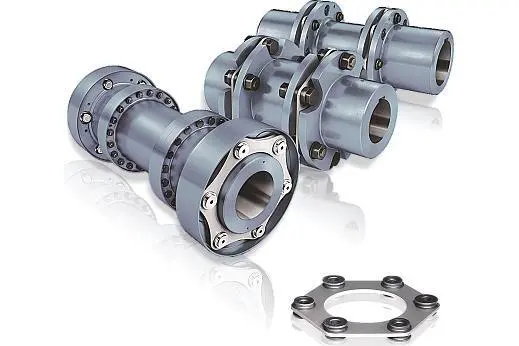

A range of disc couplings utilize disc packs with 6, 8 or 10 bolt designs. Used wherever reliable torque transmission is called for, even in cases of often unavoidable shaft misalignment.

They are universally applicable over a temperature range of from -50°C (or even as low as -60°C on request) up to +280°C, are torsionally rigid, free of torsional backlash and enable quiet running at a constant angular velocity. They are wear-free and maintenance-free and, if correctly fitted, can be expected to have an unlimited service life.

An optimised plate pack and a reworked component part design enable even higher torques and speeds to be transmitted.

Attributes of the Disc Coupling Range:

• Eliminates the need for lubrication and coupling maintenance.
• Coupling can be inspected without disassembly.
• Condition of disc packs can be inspected with a strobe light while the machine is running. (Note: It is not recommended that couplings be operated without coupling guards.)
• Easy to assess equipment misalignment.
• Torsionally rigid without any backlash.
• No wearing parts.
• Resistance to harsh environments.
• Long life when properly sized and aligned.
• High power density (higher torque for a given outside diameter).
• Meet the requirement of API 610. Couplings in accordance with API 671 are also possible.
• ATEX Certified on request.

For:

• Attributes of the disc coupling range.
• Steps in selecting a disc coupling.
• Application service factors selection data.
• Technical specification catalogue.
• Fill in work sheet for help to specify coupling.

Please visit www.jbj.co.uk/disc-couplings.html
